A bit of odd case here. Connections with five different beam sections (w18x35, w18x40, w18x46,. A shear plate can also be skewed, as well as offset, to a wide flange column.

The Suitable Designs For The Specific Geometry Are Displayed In Seconds;

The Suitable Designs For The Specific Geometry Are Displayed In Seconds;, Connections

You’ll also learn how to determine applicable limit states and translate calculation results into details. You could use a seat connection with. You could use a bolted end plate connection and resolve the moment with your bolt group.

A Masterpiece In Using Hollow Sections For The Roof Structure, Even With Relation To The Bim Interconnection Between Several.

A Masterpiece In Using Hollow Sections For The Roof Structure, Even With Relation To The Bim Interconnection Between Several., Connections

For the continuous beam over the.

Images References

Images References, Connections

An End Plate Moment Connection Is Prequalified For Limited Applications, But This Detail Would Require Extensive Testing.

An End Plate Moment Connection Is Prequalified For Limited Applications, But This Detail Would Require Extensive Testing., Connections

You could weld the tube to the flange of the wf column. You’ll also learn how to determine applicable limit states and translate calculation results into details. A shear plate can also be skewed, as well as offset, to a wide flange column.

Moment Connections Develop Continuity And Rigidity Between A Beam And A Column.

Moment Connections Develop Continuity And Rigidity Between A Beam And A Column., Connections

First, the limit states of local yielding and local crippling of the wall of the hss column are investigated. 2 hss column local yielding and crippling. Explore detailing options for hss beam connections and step through an example for a laterally offset connection in this sti webinar.

So A Full Pen Weld Is Not Likely To Be Required.

So A Full Pen Weld Is Not Likely To Be Required., Connections

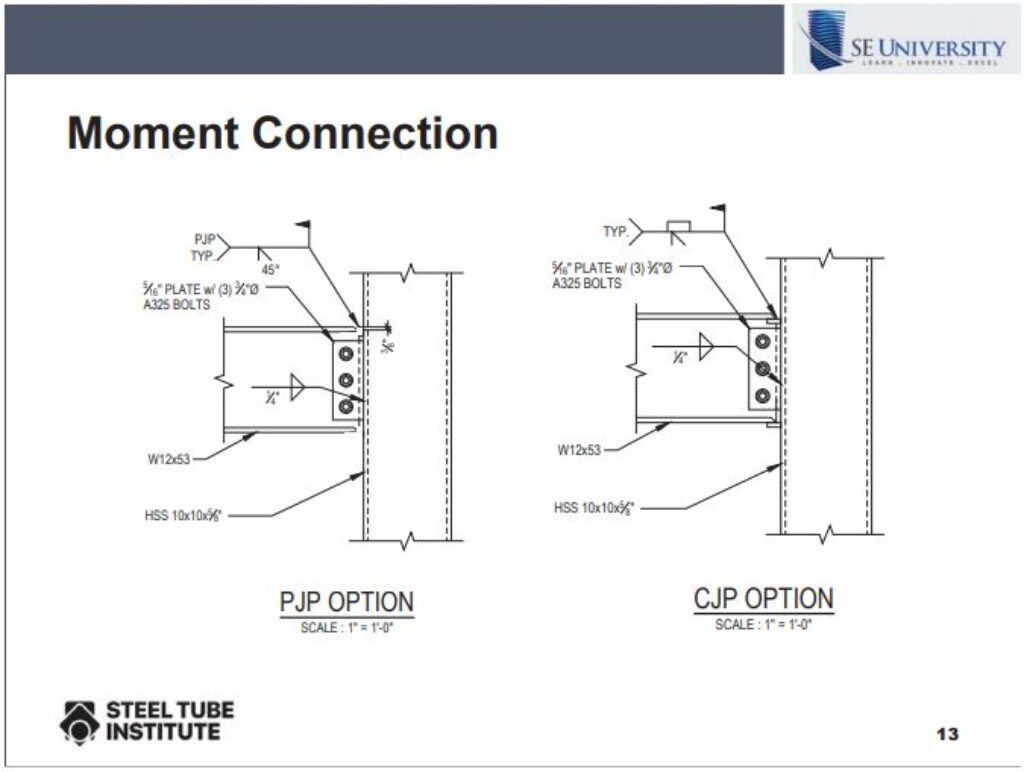

A bit of odd case here. I've been looking at different schemes to do a moment connection between a wf column to hss rect/square beam (both sides of column). These connections are defined specifically as moment resisting which means the load transference between the beam and column takes it's path through the sidewall of the hollow section columns.

For The Continuous Beam Over The.

For The Continuous Beam Over The., Connections

I was thinking it would need to be bolted, limited. You could use a seat connection with. How to deal with the hollow section connections?

Normally You Don't Develop The Full Flange Yield Strength Because Column Wall Strength Won't Take You That Far Anyhow.

Normally You Don't Develop The Full Flange Yield Strength Because Column Wall Strength Won't Take You That Far Anyhow., Connections

Idea statica connection has prepared templates even for these quite rarely used and complicated. Connection design can create shear plates on wide flange or channel beams that frame offset to wide flange or hss rectangular columns. The suitable designs for the specific geometry are displayed in seconds;
